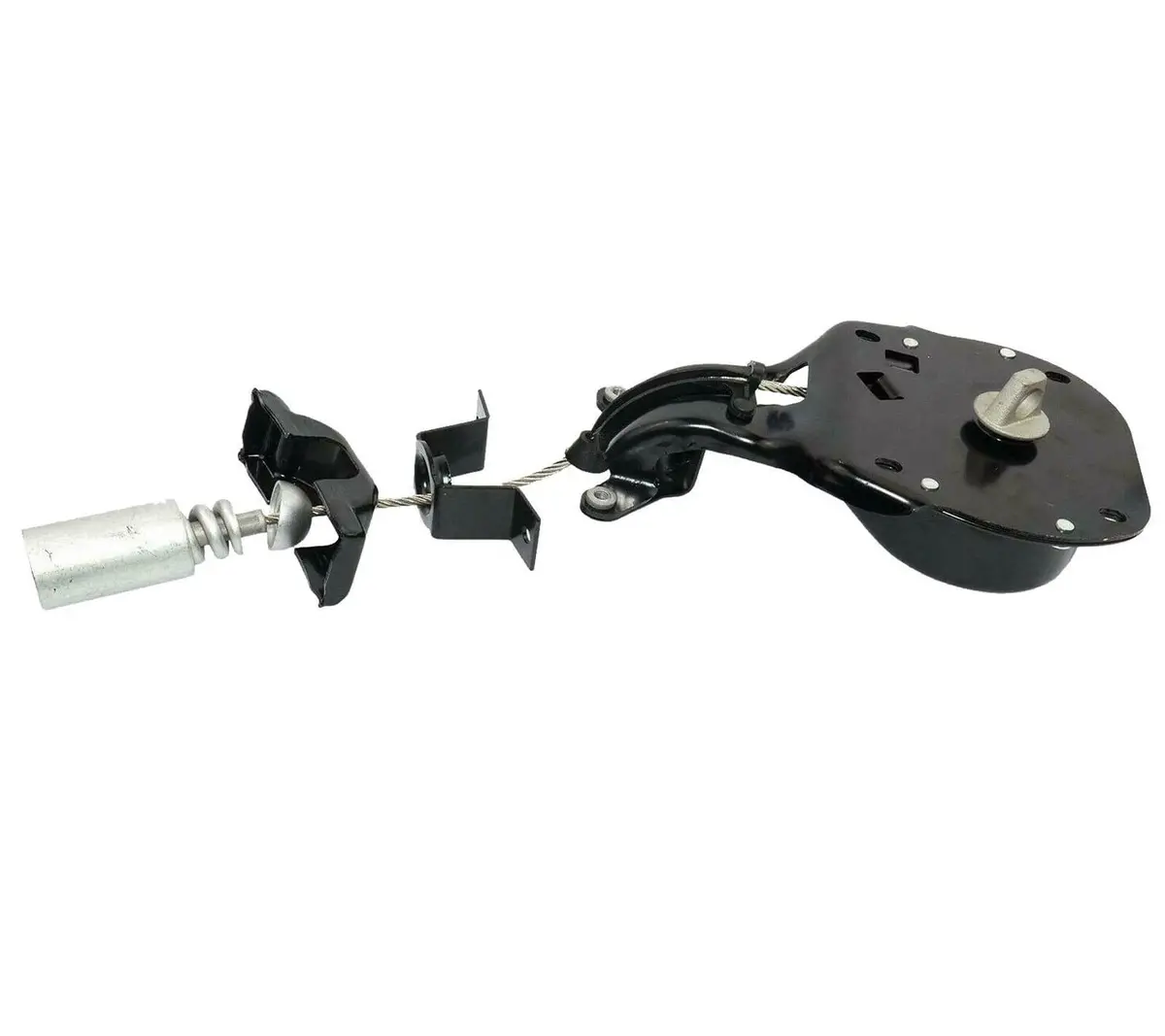

Land Rover Spare Wheel Winch Mechanism – Upgraded Manual Hoist Assembly

Description

Check part compatibility by using our vehicle filter options below. If you find your car, this part is compatible.

Restore safe and reliable spare wheel operation with this updated spare wheel winch mechanism designed for Land Rover Discovery 3, Discovery 4 and Range Rover Sport (L320) models. Engineered as a direct replacement for OEM references including LR064520, LR024145, LR039485, LR039486, this mechanical carrier allows smooth lowering and raising of the spare wheel from beneath the vehicle. Built to OEM-equivalent standards with improved durability, it provides a dependable solution for worn, seized or broken original winches.
OEM Number: LR024145, LR039486, LR064520, LR064520B, LR039485
LR024145,LR039486,LR064520, LR010453, KTI000017
Quantity : 1

Make	Model	Variant	Type	Engine	Chassis	Year
Land Rover	Discovery	Diesel SUV	2.7 TD 4×4	2720cc 140KW 190HP 276DT	AWD IV L319	2009-2020
Land Rover	Discovery	Diesel SUV	2.7 TD 4×4	2720cc 140KW 190HP 276DT	AWD III L319	2004-2009
Land Rover	Discovery	Diesel SUV	3.0 SDV6 4×4	2993cc 188KW 256HP 306DT	AWD IV L319	2009-2020
Land Rover	Discovery	Diesel SUV	3.0 TD 4×4	2993cc 180KW 245HP 306DT	AWD IV L319	2009-2020
Land Rover	Discovery	Diesel SUV	3.0 TD 4×4	2993cc 200KW 272HP 306DT	AWD IV L319	2009-2020
Land Rover	Discovery	Diesel Van	2.7 TD 4×4	2720cc 140KW 190HP 276DT	AWD III L319	2007-2009
Land Rover	Discovery	Petrol SUV	4.0 4×4	3999cc 160KW 218HP —	AWD III L319	2005-2009
Land Rover	Discovery	Petrol SUV	4.0 4×4	4009cc 160KW 218HP 406PN	AWD IV L319	2009-2020
Land Rover	Discovery	Petrol SUV	4.0 4×4	4009cc 161KW 219HP 406PN	AWD III L319	2005-2009
Land Rover	Discovery	Petrol SUV	4.0 V6 4×4	4009cc 160KW 218HP 406PN	AWD III L319	2004-2009
Land Rover	Discovery	Petrol SUV	4.4 4×4	4394cc 220KW 299HP 448PN	AWD III L319	2004-2009
Land Rover	Discovery	Petrol SUV	5.0 V8 4×4	4999cc 276KW 375HP 508PN	AWD IV L319	2009-2020
Land Rover	Range Rover Sport	Diesel SUV	2.7 D 4×4	2720cc 140KW 190HP 276DT	AWD L320	2005-2013
Land Rover	Range Rover Sport	Diesel SUV	3.0 D 4×4	2993cc 155KW 211HP 30DDTX	AWD L320	2010-2013
Land Rover	Range Rover Sport	Diesel SUV	3.0 D 4×4	2993cc 180KW 245HP —	AWD L320	2009-2013
Land Rover	Range Rover Sport	Diesel SUV	3.0 D 4×4	2993cc 183KW 249HP 306DT	AWD L320	2012-2013
Land Rover	Range Rover Sport	Diesel SUV	3.0 D 4×4	2993cc 188KW 256HP 30DDTX	AWD L320	2011-2013
Land Rover	Range Rover Sport	Diesel SUV	3.6 D 4×4	3628cc 200KW 272HP 368DT	AWD L320	2006-2013
Land Rover	Range Rover Sport	Petrol SUV	4.2 4×4	4196cc 298KW 405HP 428PS	AWD L320	2005-2010
Land Rover	Range Rover Sport	Petrol SUV	4.2 4×4	4197cc 287KW 390HP 428PS	AWD L320	2005-2013
Land Rover	Range Rover Sport	Petrol SUV	4.2 4×4	4197cc 291KW 396HP 428PS	AWD L320	2006-2010
Land Rover	Range Rover Sport	Petrol SUV	4.4 4×4	4394cc 220KW 299HP 448PN	AWD L320	2005-2013
Land Rover	Range Rover Sport	Petrol SUV	5.0 4×4	4999cc 276KW 375HP 508PN	AWD L320	2009-2013
Land Rover	Range Rover Sport	Petrol SUV	5.0 4×4	4999cc 372KW 506HP 508PS	AWD L320	2009-2013
Land Rover	Range Rover Sport	Petrol SUV	5.0 4×4	4999cc 375KW 510HP 508PS	AWD L320	2009-2013
Make	Model	Variant	Type	Engine	Chassis	Year

Our SKU: TLR064520_313
All our Updated Version Spare Wheel Winch Mechanism are OEM quality and reliable after market car parts. This Updated Version Spare Wheel Winch Mechanism For Discovery, Range Rover Sport
Please use our make-model-year tool to check this part’s compatibility with your vehicle. However, please note that our tool is for reference only and we recommend that you check the part number on your old unit prior to purchasing.
If you are still not sure about the compatibility of this part to your vehicle, please supply us with the VIN number or Reg number in our live chat or contact form! You can also find details on our purchasing & shipping guide here.

Key Benefits

✔ Direct OEM replacement — compatible with LR064520, LR024145, LR039485, LR039486 and related numbers
✔ Updated heavy-duty design — improved durability over early versions
✔ Smooth spare wheel lowering & lifting operation
✔ Helps prevent spare wheel seizure and cable failure
✔ Rear underbody mounting position for accurate fitment
✔ Durable steel cable and mechanism construction
✔ Direct replacement installation — no modifications required
✔ Suitable for garages and DIY mechanics
✔ Fast UK dispatch from D2P AutoParts

Frequently Asked Questions

Q1. What does the spare wheel winch mechanism do?

The winch mechanism controls the cable and drum that raise and lower the spare wheel mounted underneath the vehicle, allowing access when needed.

Q2. Which vehicles is this compatible with?

This mechanism commonly fits:

• Land Rover Discovery 3 (2004-2009)

• Land Rover Discovery 4 (2009-2016)

• Range Rover Sport L320 (2005-2013)

Compatibility depends on OEM number and configuration, so always confirm before ordering.

Q3. What are the symptoms of a failing spare wheel winch?

Common signs include:

• Spare wheel stuck underneath vehicle

• Cable not lowering or raising

• Seized or rusted mechanism

• Broken or frayed cable

• Excessive resistance when operating

Q4. Is this an OEM or aftermarket part?

This is a high-quality aftermarket replacement designed to match OEM fit and performance standards.

Q5. Can I install this myself?

Installation is usually straightforward with basic tools, but professional installation is recommended if the original mechanism is seized or damaged.

Q6. What causes these winches to fail?

Water ingress, corrosion, dirt buildup and cable wear over time are the most common causes of spare wheel winch failure on these vehicles.
