Radium Engineering Dual Catch Can Kit with Fluid Lock for Toyota GR Supra (B58 Engine)

Description

Overview

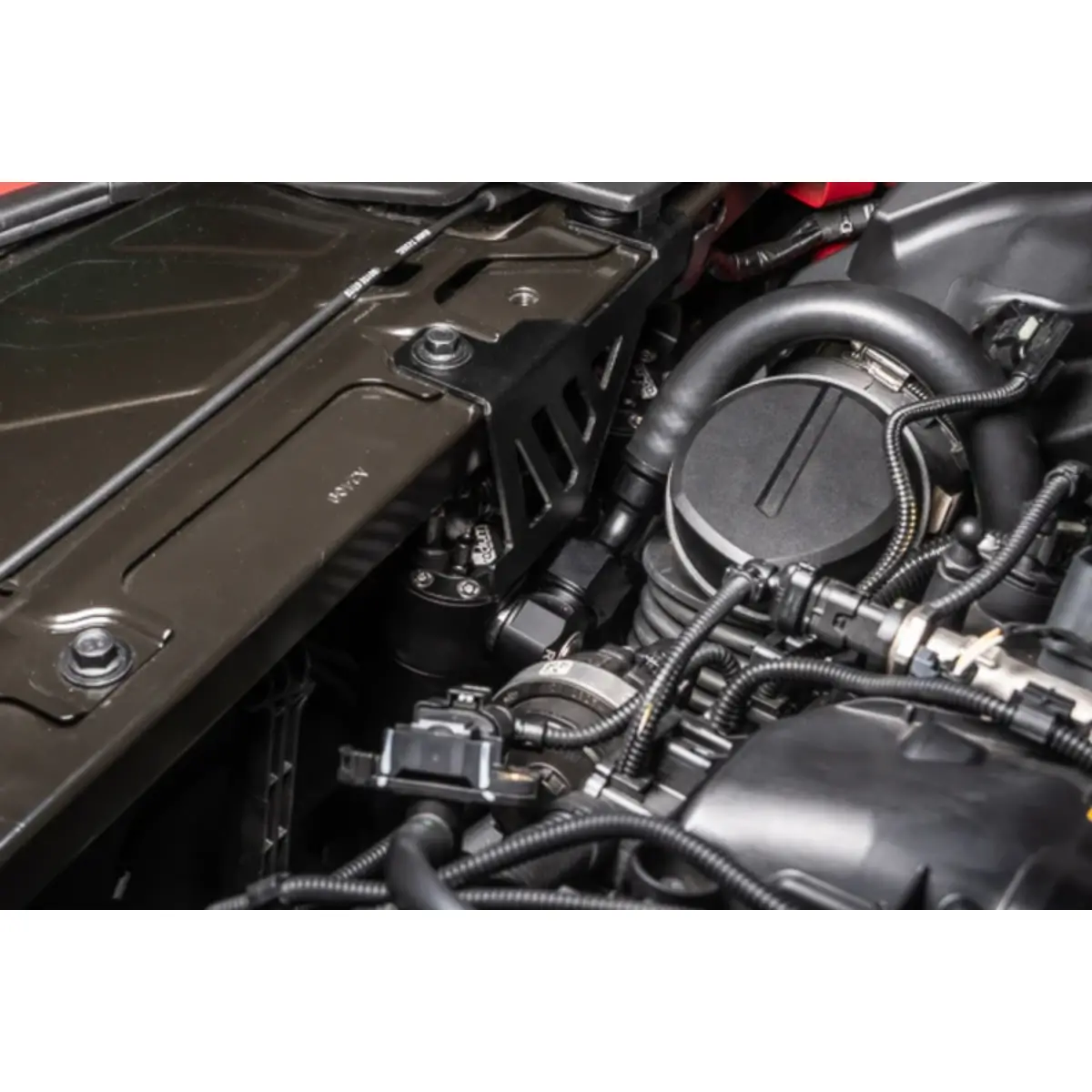

Take crankcase ventilation control to the next level with Radium Engineering’s dual catch can solution designed specifically for the turbocharged Toyota MK5 GR Supra (B58 3.0L). This complete kit uses Radium’s patented Fluid Lock® technology to help keep your intake system cleaner, reduce oil contamination, and promote optimal engine performance.

What It Is

A closed-loop dual catch can system that captures oil, unburnt fuel vapors, and other contaminants from both the PCV and CCV crankcase ventilation paths before they can re-enter the intake tract. Unlike standard open systems, the Fluid Lock® design traps fluid securely and prevents it from being pushed back into the engine when the can isn’t serviced regularly.

Key Features

• Purpose-Built for Your Supra: Engineered as a direct fit for the 2020+ GR Supra with no cutting or drilling required.

• Fluid Lock® Technology: Patented catch can design that prevents overfill backflow and protects your engine’s intake system.

• Efficient Separation: Dual 7fl oz baffled canisters with 2-step oil separation maximize contaminant capture.

• Robust Material & Ports: Large 10AN ORB inlet/outlet ports and a 4AN ORB drain port for effective flow and easy service.

• Easy Monitoring: Each can includes an O-ring sealed dipstick, making it simple to check fluid levels without removing the unit.

• Closed System: Does not vent to atmosphere (VTA), helping maintain proper crankcase pressure and making it suitable for both street and track applications.

What’s Included

• Dual Fluid Lock® catch cans

• Vehicle-specific mounting brackets

• Complete set of hoses, AN fittings, and adapter ends

• Stainless-steel installation hardware

• Supra-specific PCV hoses
